LDS

激光靠泊监控系统

Laser Docking System

Coneall® 的靠泊辅助监控系统，主要用来监控和记录危险品船舶在码头作业期间的船舶信息。LDS(Laser Docking System)系统会测量出船舶与靠泊线之间的距离（靠泊距离）以及计算出船舶在靠泊作业时的靠泊速度和靠泊角度。

LDS系统可以给船舶的领航人员和码头工作人员通过多种方式实时提供精准的靠泊信息，比如可以通过安装在码头前沿的防爆大型显示屏和防爆PDA。系统可以防止由于工作人员或者领航人员的经验误判导致船舶靠泊速度过快而冲撞码头的危险事故发生。

The CONEALL LDS monitors and records the vessel approach and departure. It measures the distance from the fender line to the vessel and calculates the approach speed and angle.

Berthing Aid System provides the information to the pilot and the jetty staff members by several ways, such as large LED display mounted on the jetty and Ex-PDA. The Berthing Aid System helps protecting the fenders and dolphins from damage by warning the pilot and the jetty staff members in case of over speed.

防爆激光测距仪 Laser Sensor

型号 Type	CNL-LMU300Ex
品牌 Brand	Coneall®
防爆等级 Explosive-proof	Exde IIC T6
防护等级 Protection	IP66
测量范围 Range	0~300m
安全性 Safety	人眼直视无伤害FDA(CFR21)I类 FDA(CFR21) I Class

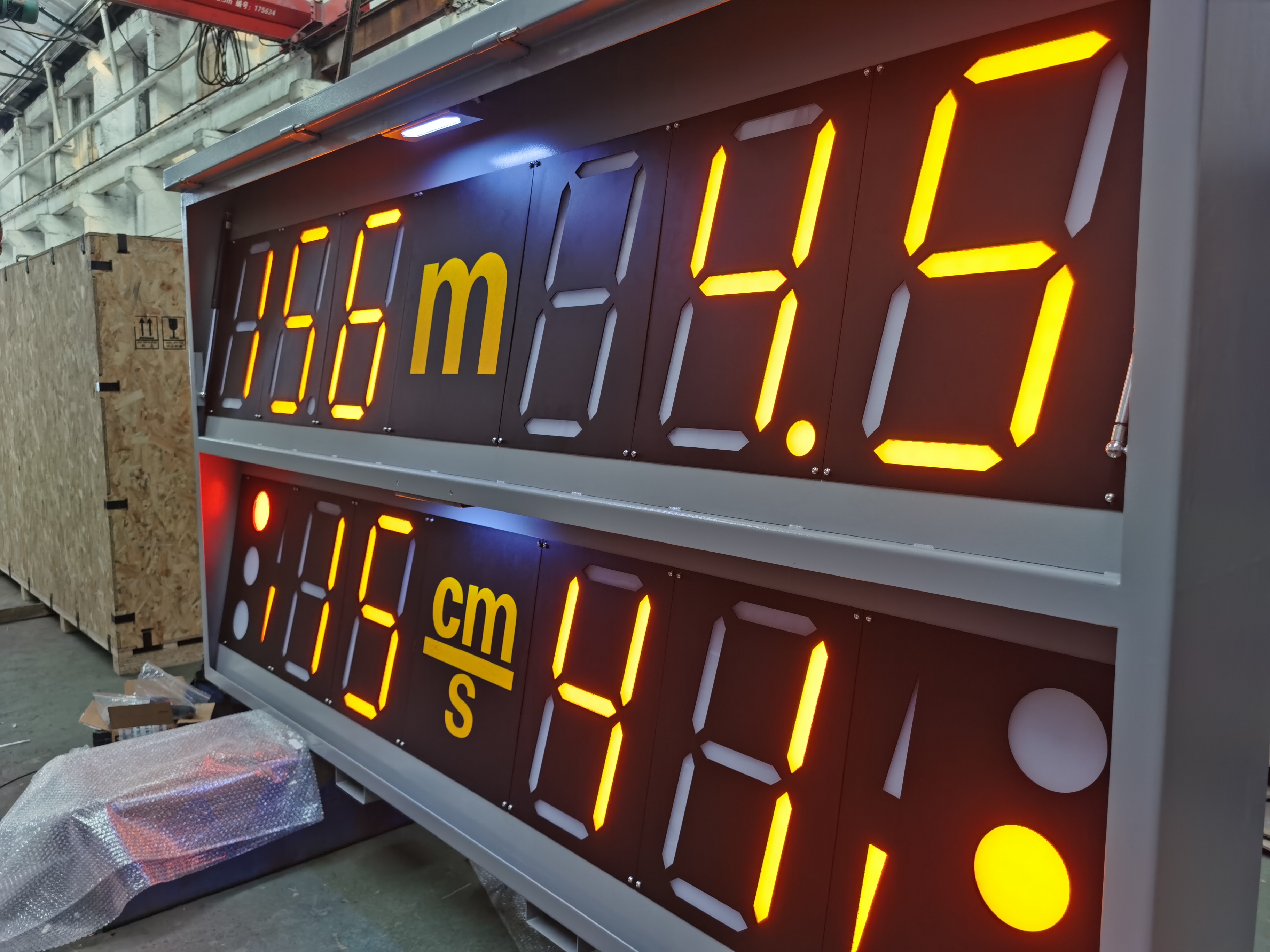

防爆大型显示屏 Large LED Display

型号 Type	CNL-LMU300Ex
品牌 Brand	Coneall®
防爆等级 Explosive-proof	Exde IIC T6
防护等级 Protection	IP66
可视角度 Viewing Angle	水平±60° 垂直±60° Horizontal ±60° Vertical ±60°
距离显示 Distance Display	0~199m（0~999可选）
速度显示 Speed Display	0-99cm/s
速度警示灯 Speed Warning Lamps	红/黄/绿Red/Yellow/Green
抗风等级 Wind Resistance	55m/s
